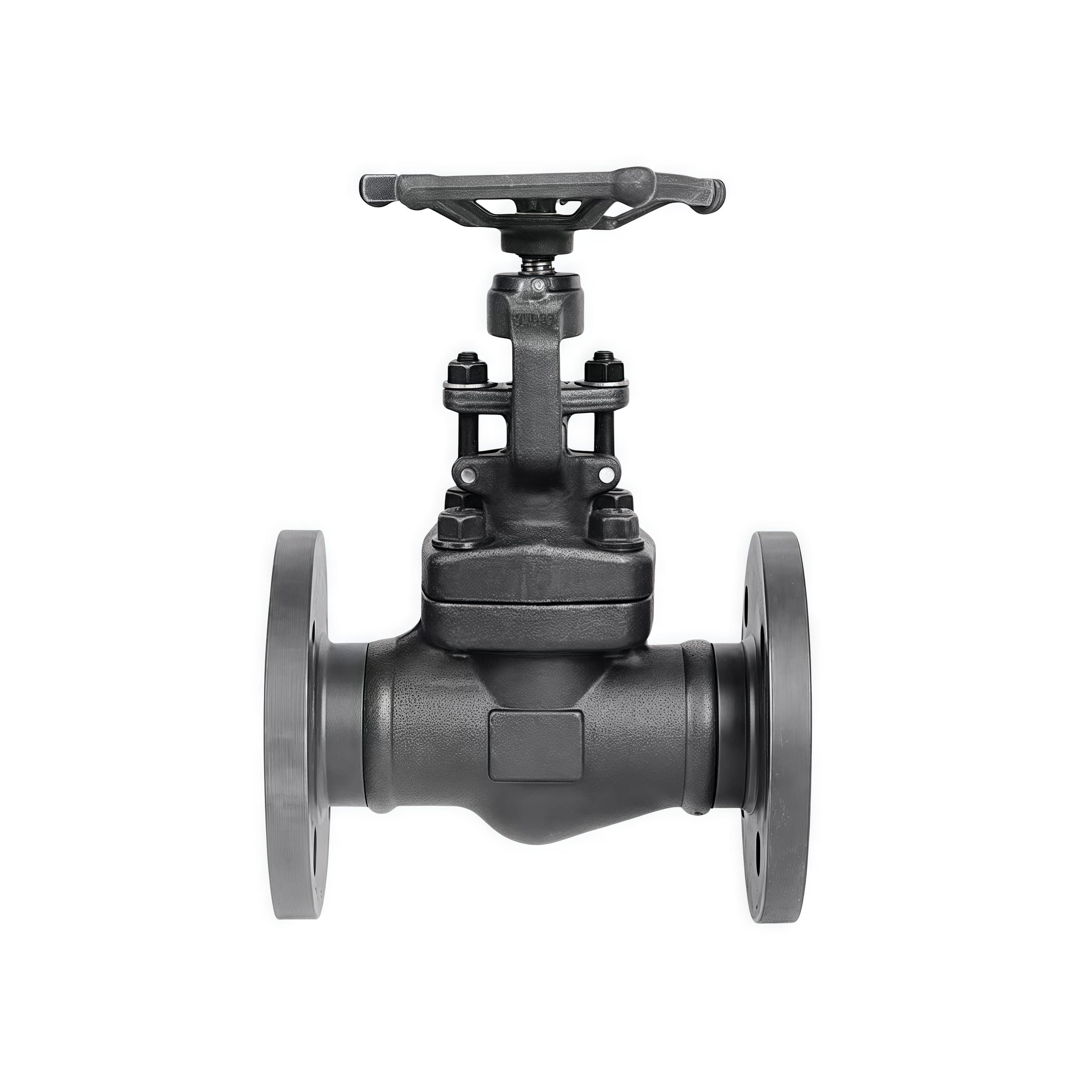

A105 Forged Steel Flanged Globe Valve J41H-16C DN40 PN16
PN16 forged globe valve, DN40, body ASTM A105 Forged Carbon Steel, Flanged RF (GB/T 9113 / ASME B16.5), lever handle, GB/T 12234 / GB/T 13932. General industrial service: water, steam, oil, gas and non-corrosive process media. Suitable for power, petrochemical and boiler systems.
描述
The J41H-16C is an flanged globe valve made from ASTM A105 Forged Carbon Steel, built for high-pressure industrial service.
- Model: J41H-16C
- Nominal Size: DN40
- Pressure Rating: PN16
- Body Material: ASTM A105 Forged Carbon Steel
- Trim: 13Cr (A105 + 410) trim, PTFE/graphite gasket
- Ends: Flanged RF (GB/T 9113 / ASME B16.5)
- Design Standard: GB/T 12234 / GB/T 13932
- Applicable Media: General industrial service: water, steam, oil, gas and non-corrosive process media. Suitable for power, petrochemical and boiler systems.
Custom sizes, pressure ratings and test certificates (API 598 / GB/T 13927) available on request.
其他信息
| Nominal Size | DN40 |
|---|---|
| Pressure Rating | PN16 |
| Body Material | ASTM A105 Forged Carbon Steel |
| End Connection | Flanged RF (GB/T 9113 / ASME B16.5) |
| Design Standard | GB/T 12234 / GB/T 13932 |
