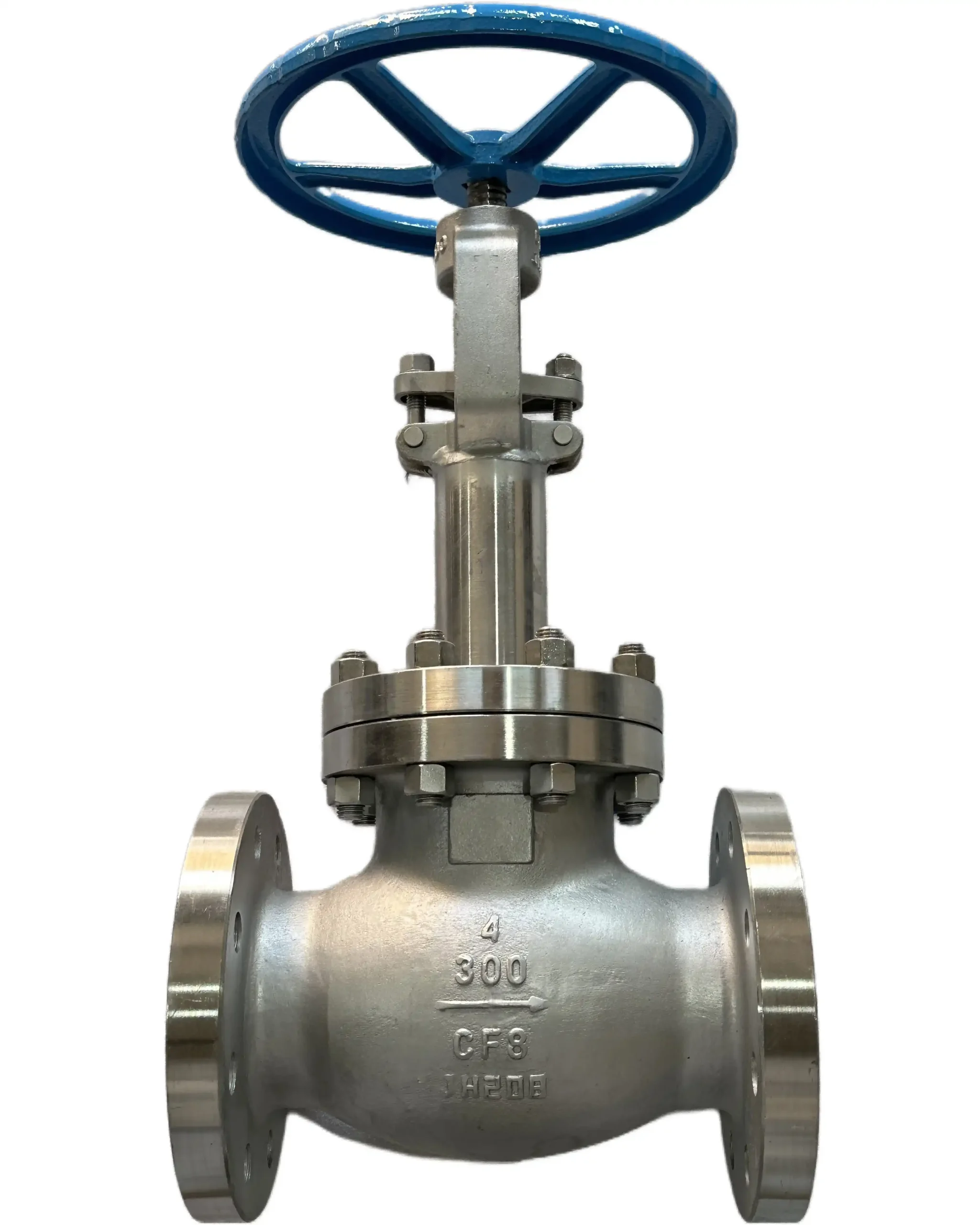

DJ41W-300LBP NPS 4 304
Industrial Class 300 flanged globe valve, NPS 4, body CF8 (304 Stainless Steel), API 602 / ASME B16.34, Flanged RF (ASME B16.5), handwheel operated. Cryogenic / low-temperature service down to -196??C, extended bonnet design for LNG, liquid nitrogen, oxygen and other cryogenic media.
描述
The DJ41W-300LBP NPS 4 304 is a cast stainless steel flanged globe valve built for heavy-duty industrial service.
- Model: DJ41W-300LBP
- Nominal Size: NPS 4
- Pressure Rating: Class 300
- Body / Bonnet Material: CF8 (304 Stainless Steel)
- Trim / Sealing Surface: Stellite / RF machined from body
- Ends: Flanged RF (ASME B16.5)
- Operation: Handwheel (manual)
- Design Standard: API 602, ASME B16.34, BS 5352
- Applicable Media: Cryogenic / low-temperature service down to -196??C, extended bonnet design for LNG, liquid nitrogen, oxygen and other cryogenic media.
Custom sizes, pressure ratings, actuator options and test certificates (API 598 / EN 12266) available on request. Contact us for project-based quotation.
其他信息
| Nominal Size | NPS 4 |
|---|---|
| Pressure Rating | Class 300 |
| Body Material | CF8 (304 Stainless Steel) |
| Connection Type | Flanged RF (ASME B16.5) |
| Design Standard | API 602 / ASME B16.34 |
