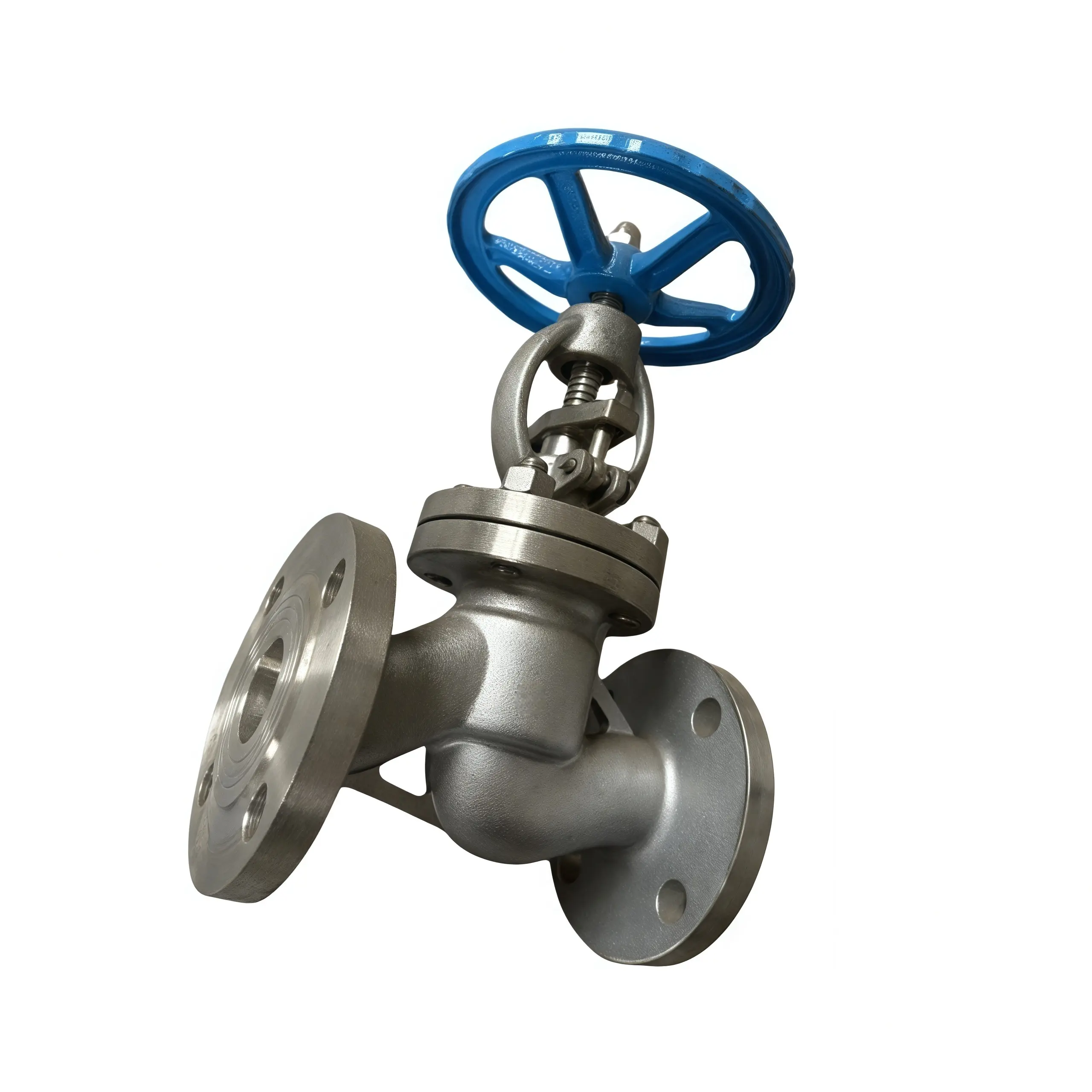

J41W-40RL DN40 316L
Industrial PN40 flanged globe valve, DN40, body CF8M (316L Stainless Steel), GB/T 12235, Flanged RF (GB/T 9113), handwheel operated. General industrial service: water, steam, oil, gas, corrosive chemical fluids and pulp/paper media.
描述
The J41W-40RL DN40 316L is a cast stainless steel flanged globe valve built for heavy-duty industrial service.
- Model: J41W-40RL
- Nominal Size: DN40
- Pressure Rating: PN40
- Body / Bonnet Material: CF8M (316L Stainless Steel)
- Trim / Sealing Surface: Stellite / RF machined from body
- Ends: Flanged RF (GB/T 9113)
- Operation: Handwheel (manual)
- Design Standard: GB/T 12235, JB/T 7745 (equivalent to API 602 / BS 5352)
- Applicable Media: General industrial service: water, steam, oil, gas, corrosive chemical fluids and pulp/paper media.
Custom sizes, pressure ratings, actuator options and test certificates (API 598 / EN 12266) available on request. Contact us for project-based quotation.
其他信息
| Nominal Size | DN40 |
|---|---|
| Pressure Rating | PN40 |
| Body Material | CF8M (316L Stainless Steel) |
| Connection Type | Flanged RF (GB/T 9113) |
| Design Standard | GB/T 12235 |
