J41W-150LBP NPS 2 304
Industrial Class 150 flanged globe valve, NPS 2, body CF8 (304 Stainless Steel), API 602 / ASME B16.34, Flanged RF (ASME B16.5), handwheel operated. General industrial service: water, steam, oil, gas, corrosive chemical fluids and pulp/paper media.
描述

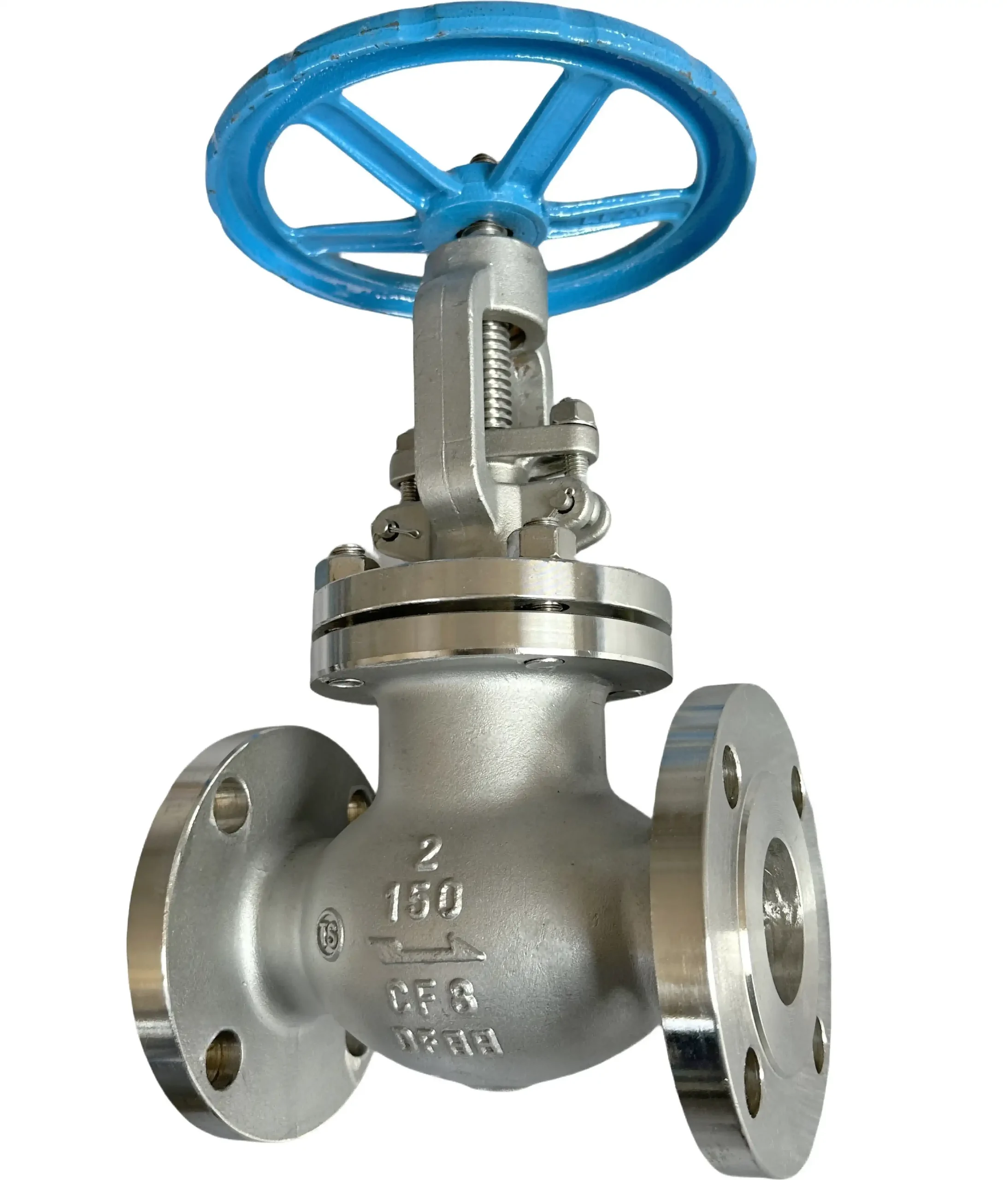

The J41W-150LBP NPS 2 304 is a cast stainless steel flanged globe valve built for heavy-duty industrial service.
- Model: J41W-150LBP
- Nominal Size: NPS 2
- Pressure Rating: Class 150
- Body / Bonnet Material: CF8 (304 Stainless Steel)
- Trim / Sealing Surface: Stellite / RF machined from body
- Ends: Flanged RF (ASME B16.5)
- Operation: Handwheel (manual)
- Design Standard: API 602, ASME B16.34, BS 5352
- Applicable Media: General industrial service: water, steam, oil, gas, corrosive chemical fluids and pulp/paper media.
Custom sizes, pressure ratings, actuator options and test certificates (API 598 / EN 12266) available on request. Contact us for project-based quotation.
其他信息
| Nominal Size | NPS 2 |
|---|---|
| Pressure Rating | Class 150 |
| Body Material | CF8 (304 Stainless Steel) |
| Connection Type | Flanged RF (ASME B16.5) |
| Design Standard | API 602 / ASME B16.34 |
