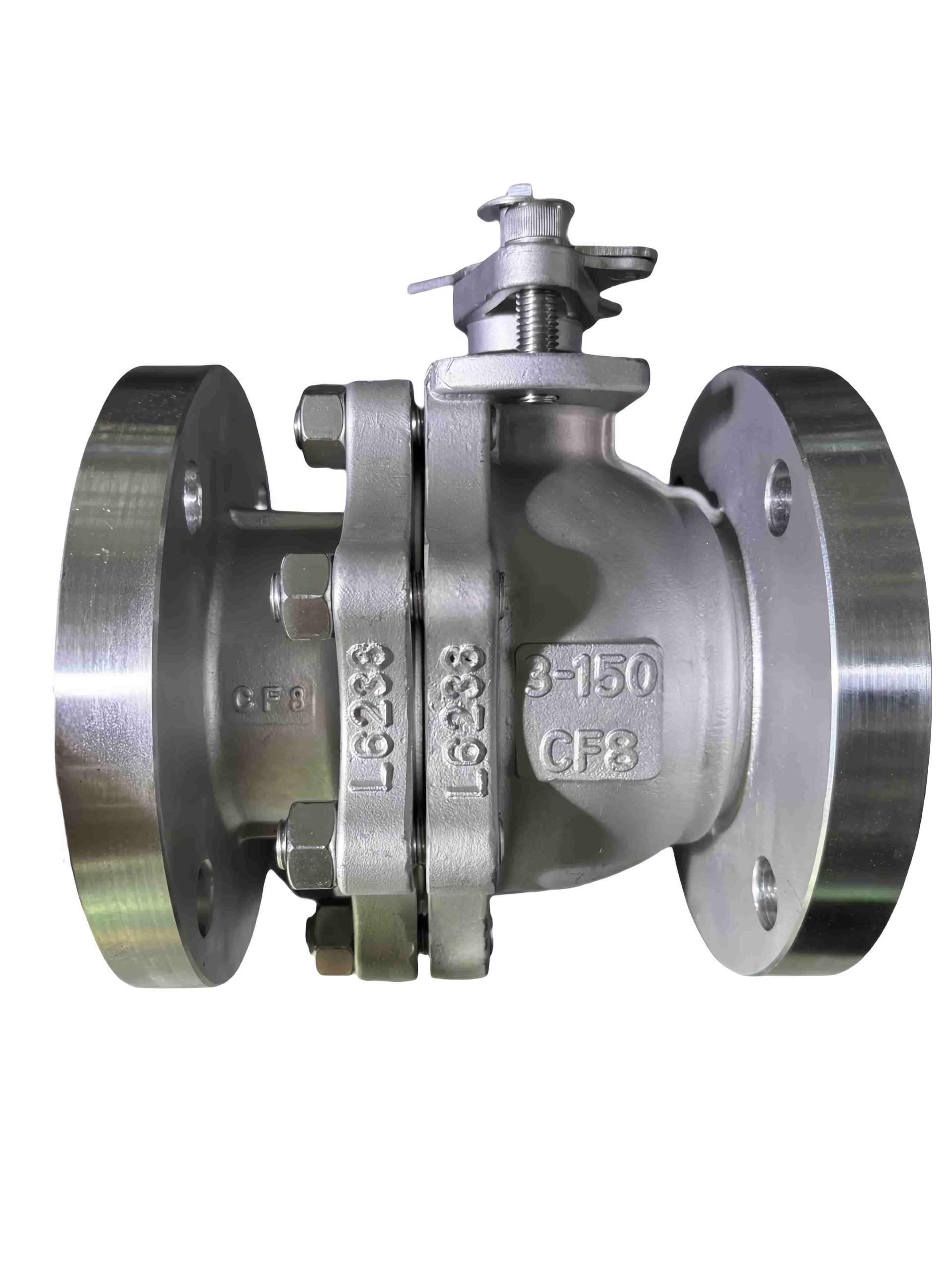

Stainless Steel Floating Flanged Ball Valve Q41F-150LBP NPS 3 304
Class 150 ball valve, NPS 3, body CF8 (304 Stainless Steel), Flanged RF (ASME B16.5), lever handle (manual), API 6D / ASME B16.34. On/off and flow diversion service: water, oil, gas, steam, and general process media. Suitable for industrial, petrochemical and water treatment.
描述
The Q41F-150LBP is a stainless steel ball valve built for heavy-duty industrial service.
- Model: Q41F-150LBP
- Nominal Size: NPS 3
- Pressure Rating: Class 150
- Body Material: CF8 (304 Stainless Steel)
- Seat: PTFE / RPTFE soft seat
- Ends: Flanged RF (ASME B16.5)
- Operation: Lever handle (manual)
- Design Standard: API 6D / ASME B16.34
- Applicable Media: On/off and flow diversion service: water, oil, gas, steam, and general process media. Suitable for industrial, petrochemical and water treatment.
Custom sizes, actuator options and test certificates (API 598 / GB/T 13927) available on request. Contact us for project-based quotation.
其他信息
| Nominal Size | NPS 3 |
|---|---|
| Pressure Rating | Class 150 |
| Body Material | CF8 (304 Stainless Steel) |
| Connection Type | Flanged RF (ASME B16.5) |
| Design Standard | API 6D / ASME B16.34 |
