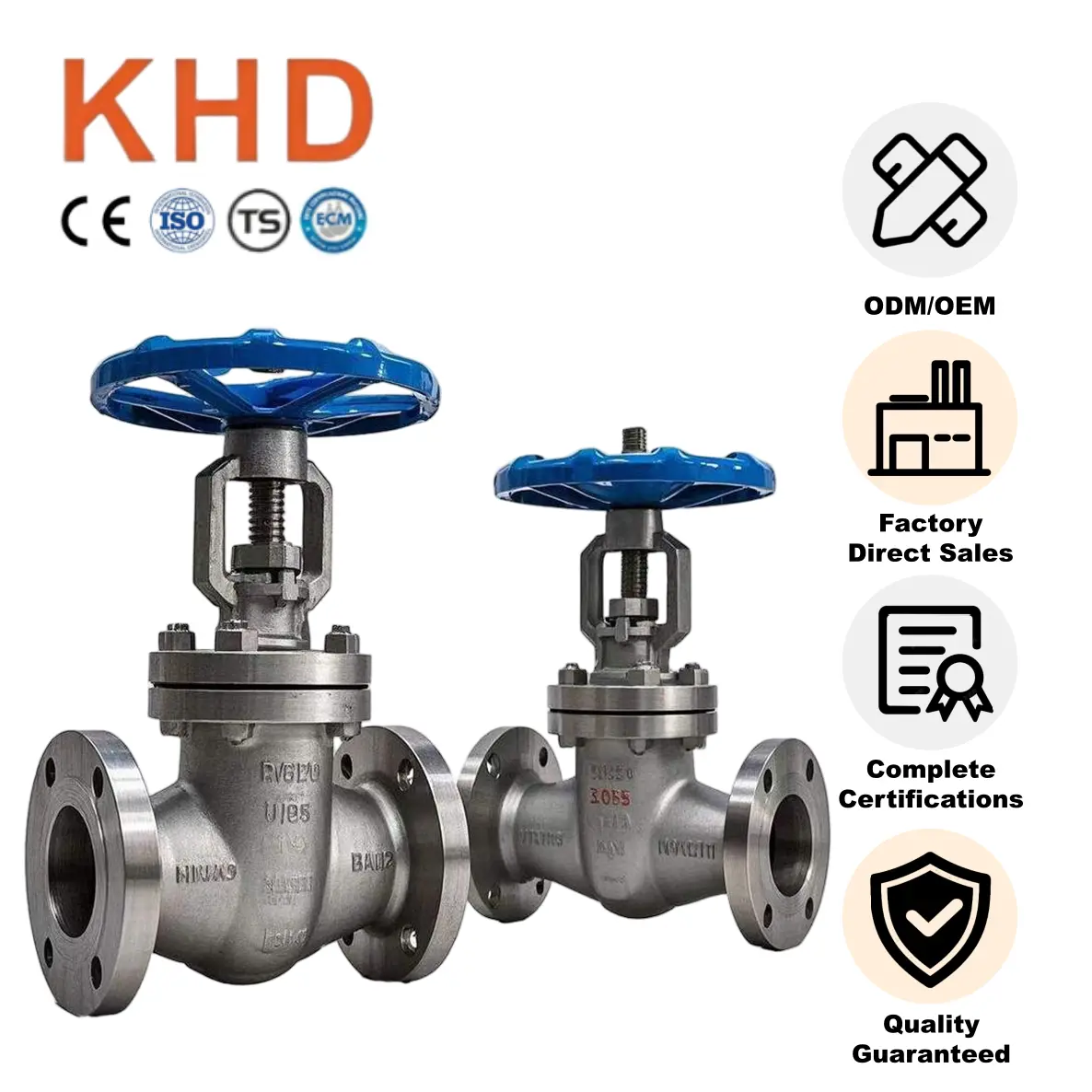

CF8 Stainless Steel Flanged Gate Valve Z41W-16P DN50 PN16
CF8/304 stainless steel flanged gate valve, DN50, PN16, rising stem, blue handwheel, GB standard.
描述
This CF8 (304) Stainless Steel flanged gate valve is manufactured to Chinese GB standard. The rising stem (OS&Y) design provides clear visual indication of valve position. Suitable for water treatment, chemical, pharmaceutical, food and general industrial piping systems.
- Body Material: CF8 (304) Stainless Steel
- Size: DN50
- Pressure: PN16
- End Connection: RF Flanged (GB/T 9113)
- Actuation: Handwheel
- Stem: Rising Stem (OS&Y)
- Standard: GB/T 12234, GB/T 13927
- Temperature Range: -20??C to +200??C
其他信息
| Material | CF8 (304) Stainless Steel |
|---|---|
| Pressure | PN16 |
| Size | DN50 |
