Carbon Steel WCB Flanged Gate Valve Z41H-150LB On request Class 150 (Gray epoxy)
Class 150 flanged gate valve, On request, body ASTM A216 WCB (Carbon Steel), Flanged RF (ASME B16.5), handwheel operated, API 600 / ASME B16.34.
描述

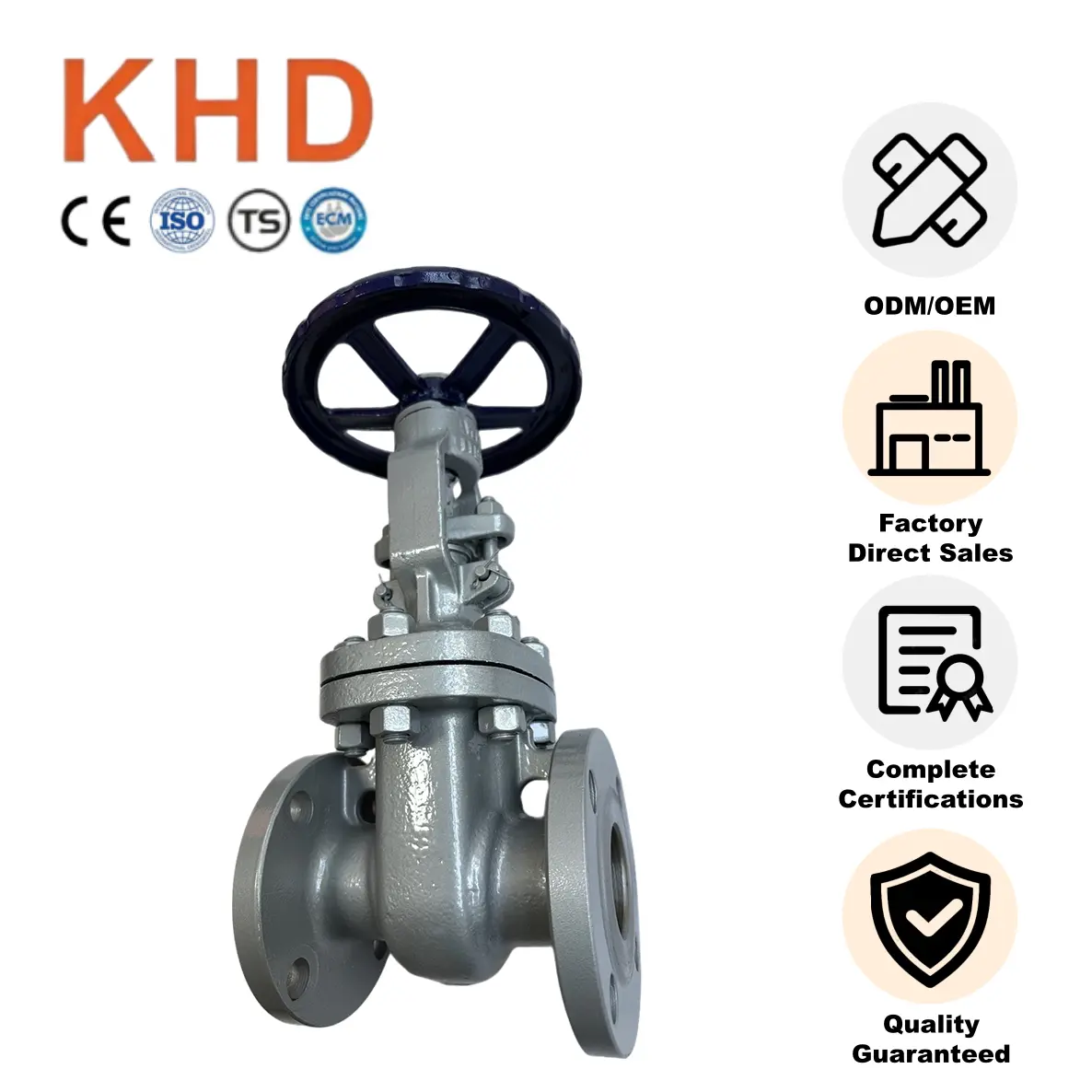

The Z41H-150LB is a carbon steel wcb flanged gate valve for heavy-duty industrial on/off service, finished in Gray epoxy coating, operated by handwheel.
- Model: Z41H-150LB
- Nominal Size: On request
- Pressure Rating: Class 150
- Body Material: ASTM A216 WCB (Carbon Steel)
- Trim: 13Cr (A105 + 410) trim, flexible graphite gasket
- Ends: Flanged RF (ASME B16.5)
- Operation: Handwheel
- Design Standard: API 600 / ASME B16.34
- Coating: Gray epoxy
Test certificates (API 598), custom sizes and actuator options available on request.
其他信息
| Nominal Size | On request |
|---|---|
| Pressure Rating | Class 150 |
| Body Material | ASTM A216 WCB (Carbon Steel) |
| End Connection | Flanged RF (ASME B16.5) |
| Actuator | Handwheel |
