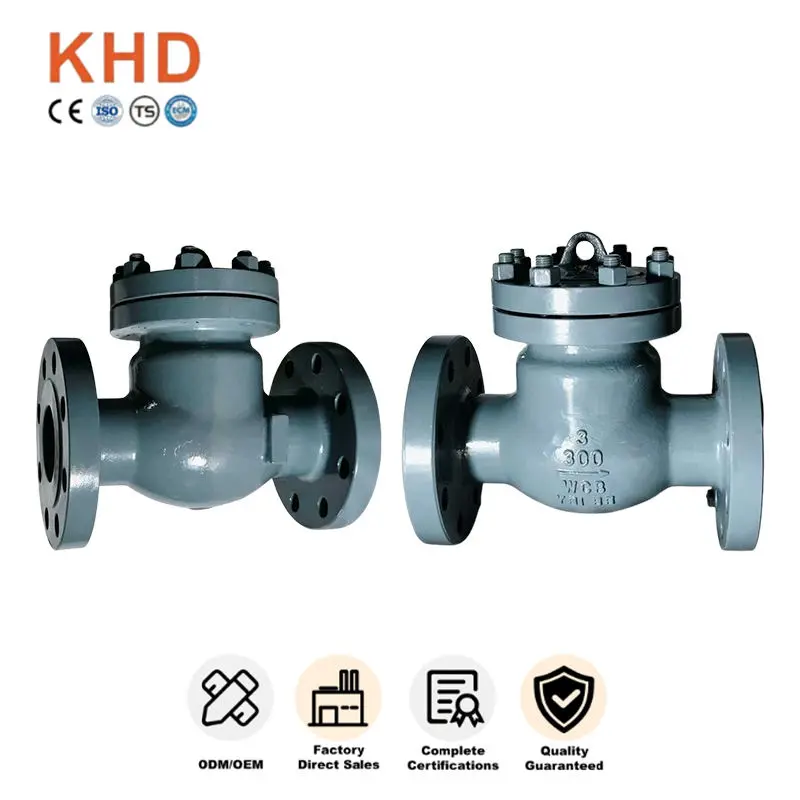

WCB Carbon Steel Swing Check Valve 3″ 300LB RF Flanged
WCB cast steel flanged swing check valve, 3″ NPS, Class 300LB, API 6D, gray painted, bolted bonnet.
描述
This 3″ WCB swing check valve is rated for higher pressure service at Class 300LB. The robust cast body and swing disc design provide dependable backflow prevention in high-pressure oil & gas, steam and process piping systems.
- Body Material: WCB Cast Carbon Steel
- Size: 3″ NPS
- Pressure Class: Class 300LB
- End Connection: RF Flanged (ASME B16.5)
- Bonnet: Bolted Bonnet with Gasket
- Disc: Stainless Steel 304
- Standard: API 6D, ASME B16.34, ASME B16.5
- Temperature Range: -29??C to +425??C
- Coating: Grey Epoxy Painting
其他信息
| 重量 | 16 公斤 |
|---|---|
| Material | WCB Cast Carbon Steel |
| Pressure Class | Class 300LB |
| Size | 3" NPS |
