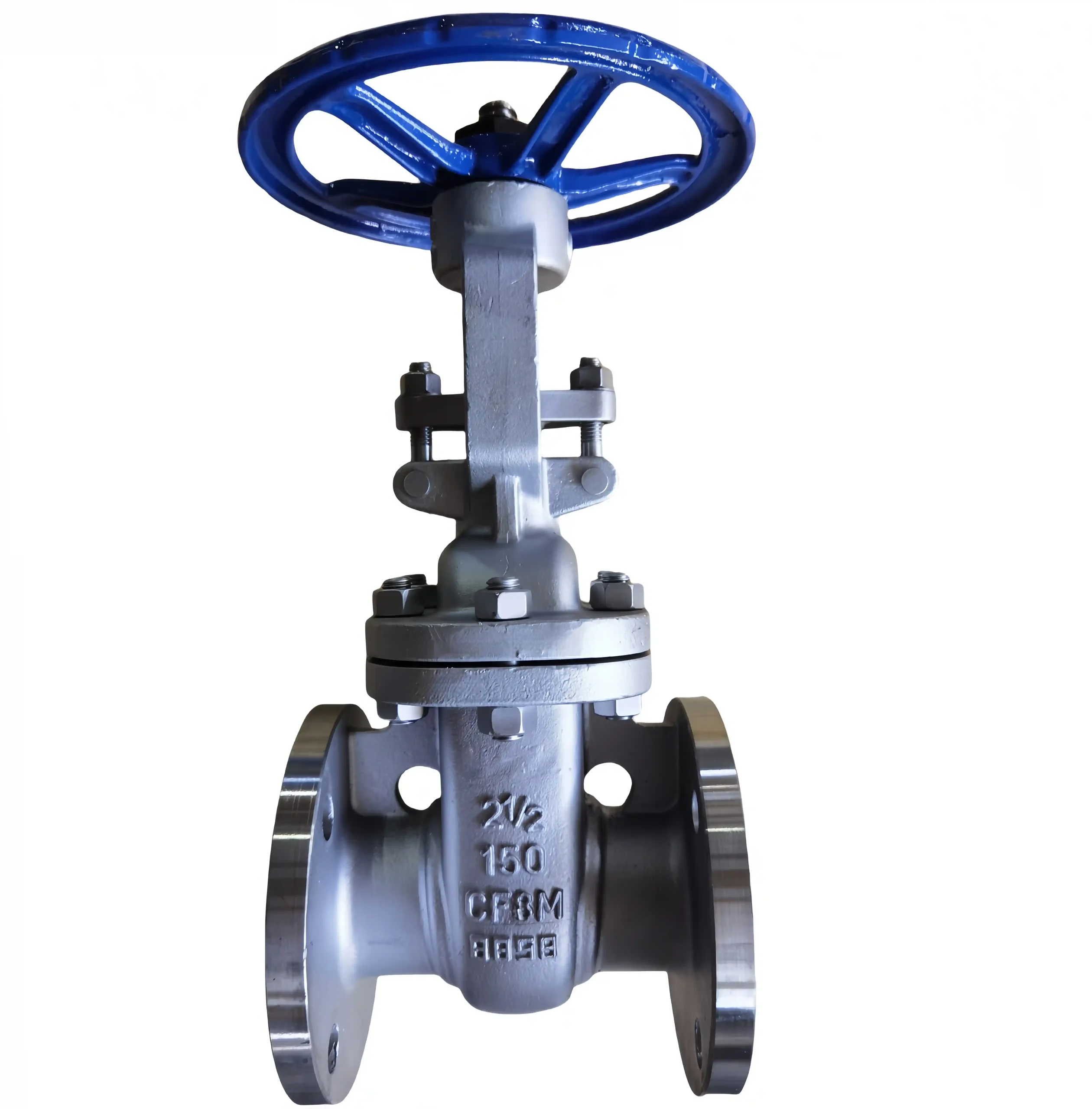

Stainless Steel Flanged Gate Valve Z41W-150LB NPS 2-1/2 Class 150
Class 150 flanged gate valve, NPS 2-1/2, body CF8M (316L Stainless Steel), Flanged RF (ASME B16.5), handwheel, API 600 / ASME B16.34.
描述
The Z41W-150LB is a stainless steel flanged gate valve for heavy-duty industrial on/off service.
- Model: Z41W-150LB
- Nominal Size: NPS 2-1/2
- Pressure Rating: Class 150
- Body Material: CF8M (316L Stainless Steel)
- Trim: 13Cr / RF stainless trim
- Ends: Flanged RF (ASME B16.5)
- Operation: Handwheel
- Design Standard: API 600 / ASME B16.34
Custom sizes, actuator options and test certificates (API 598 / GB/T 13927) available on request.
其他信息
| Nominal Size | NPS 2-1/2 |
|---|---|
| Pressure Rating | Class 150 |
| Body Material | CF8M (316L Stainless Steel) |
| End Connection | Flanged RF (ASME B16.5) |
| Actuator | Handwheel |
