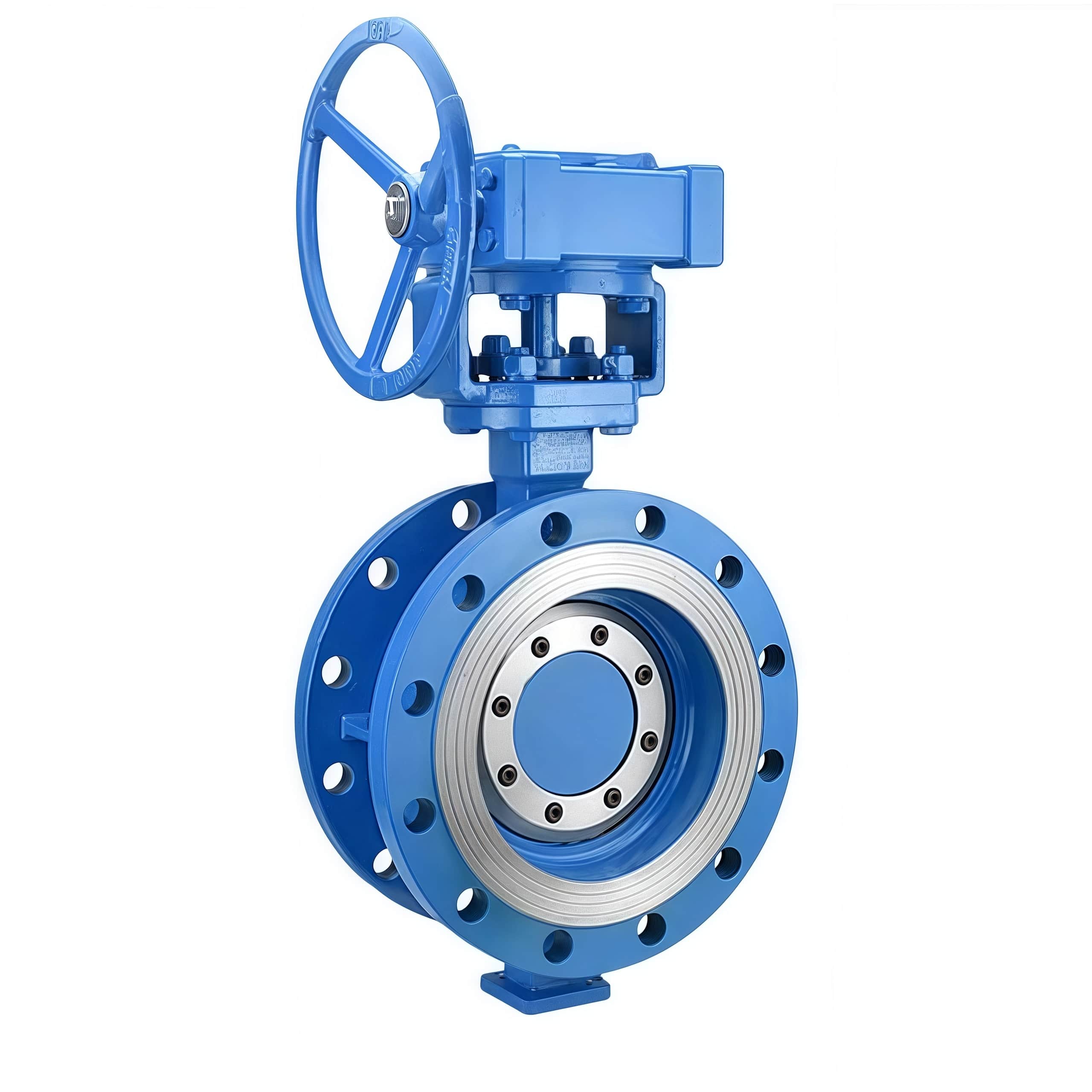

Carbon Steel WCB Triple-Offset Flanged Butterfly Valve D343H-16C
Triple-Offset Flanged Butterfly Valve, PN16, On request, body ASTM A216 WCB (Carbon Steel), Flanged (GB/T 17241 / ASME B16.5), worm gear operator, GB/T 12238 / API 609. Flow control and shut-off service: water, air, gas, oil, slurry and mild corrosive media. Suitable for HVAC, water treatment, power and general process pipelines.
描述
The Triple-Offset Flanged Butterfly Valve is a carbon steel butterfly valve built for heavy-duty industrial service.
- Model: D343H-16C
- Nominal Size: On request
- Pressure Rating: PN16
- Body / Bonnet Material: ASTM A216 WCB (Carbon Steel)
- Trim / Sealing Surface: Stellite / 13Cr metal seat
- Ends: Flanged (GB/T 17241 / ASME B16.5)
- Operation: Worm gear operator
- Design Standard: GB/T 12238 / API 609
- Applicable Media: Flow control and shut-off service: water, air, gas, oil, slurry and mild corrosive media. Suitable for HVAC, water treatment, power and general process pipelines.
Custom sizes, pressure ratings, actuator options and test certificates (API 598 / EN 12266) available on request. Contact us for project-based quotation.
其他信息
| Nominal Size | On request |
|---|---|
| Pressure Rating | PN16 |
| Body Material | ASTM A216 WCB (Carbon Steel) |
| Connection Type | Flanged (GB/T 17241 / ASME B16.5) |
| Design Standard | GB/T 12238 / API 609 |
